Product Features :
- Nokia WiFi mesh creates a seamless Wi-Fi network throughout the home
- The intelligent channel selection ensures that at each moment, the optimal Wi-Fi channel is selected, avoiding any Wi-Fi glitches
- fast and reliable Wi-Fi with a capacity of AC1200 for average Wi-Fi usage
- Simple, app-based setup and management
———————————————

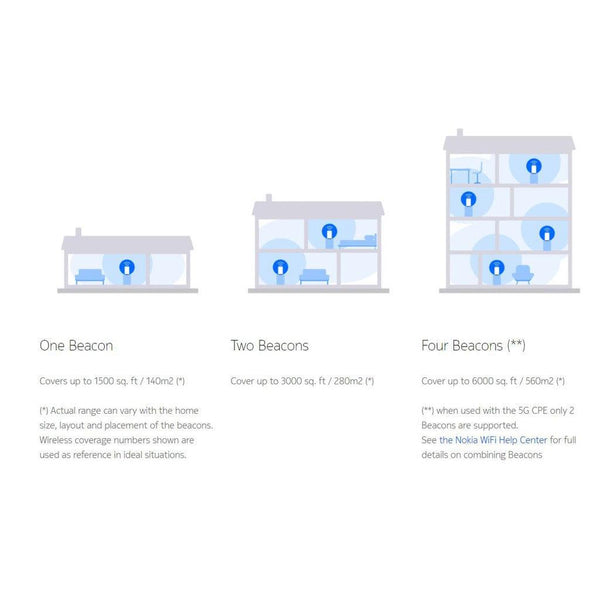

How many beacon(s) do you need ?
- One Beacon : up to 1500 sq. ft / 140m sq.
- Two Beacons : up to 3000 sq. ft / 280m sq.
- Four Beacons : up to 6000 sq. ft / 560m sq.
———————————————
Product Specifications :
Physical :
- Height : 150mm (5.9in)
- Width : 115mm (4.5in)
- Depth : 42mm (1.6in)
- Weight : 0.28kg (0.62lb)
Operating Environment :
- Temperature : -5°C-45°C (23°F-113°F)
- Relative Humidity : 5%-95%, non-condensing
Power Requirements :
- Local Powering : 12V DC input
- Power Consumption - nominal : 4.9W
- Power Consumption - maximum : 11.5W
Router Mode :
- IPv4 and IPv6 Connectivity : Dual stack and DS Lite, stateless and stateful auto-configuration, DHCPv6 prefix delegation
- Point-to-Point Protocol : Ethernet (PPPoE) and IP over Ethernet (IPoE)
- Network Address Translation (NAT) : Port forwarding, demilitarized zone (DMZ) and firewall
- Dynamic Host Configuration Protocol (DHCP) : Domain name system (DNS) proxy and dynamic domain name system (DDNS)
- Internet Group Management Protocol (IGMP) : v2/v3 proxy Multicast Listener Discovery (MLD) proxy
- Virtual Private Network (VPN) : Pass through for Point-to-Point Tunneling Protocol (PPTP), Layer 2 Tunneling Protocol (L2TP) and IPSec
Wireless LAN Interfaces :
- 802.11b/g/n 2.4GHz : 2x2 MIMO
- 802.11ac 5GHz : 2x2 MIMO
- Maximum Effective : Isotropic radiated power (EIRP) on 2.4GHz up to 500mW and 5GHz up to 1W
- Wired Equivalent Privacy (WEP) Support : 64-bit and 128-bit
- WiFi Protected Access (WPA) Support : Including Pre-Shared Key (WPA-PSK) and WPA2
- Filters : Media access control (MAC)
Ethernet Interfaces :
- WAN Side : One 10/100/1000Base-T interface with RJ-45 connector
- LAN Side : One 10/100/1000Base-T interface with RJ-45 connector
Backhaul :
- Hybrid Backhaul : Backhaul over Ethernet cable or Wi-Fi (5GHz and 2.4GHz) are supported
- Fast Rerouting : Fast rerouting from one backhaul link to another in as little as 500ms
The Nokia Wifi Beacon 1 (Wifi Mesh Network Router) is the yin, to your yang. You've found what you're looking for.
